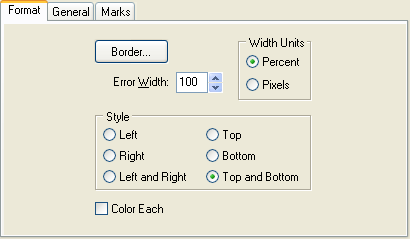

Error Series Format tab (Chart Settings dialog box)





Border

Displays the Border Properties dialog box to specify error line settings.



Error Width

Specifies the horizontal width at the ends of error bars.



Width Units

Specifies the measuring units by which the Error Width is interpreted.



Percents

Select this option to specify the Error Width value as a percentage of the space between error bars.



Pixels

Select this option to specify the Error Width value in pixels.



Style

Specifies the placement for delimiting error bars. Select Left, Right, Left and Right, Top, Bottom, or Top and Bottom.



Color Each

Specifies that error bars are drawn using different colors.
