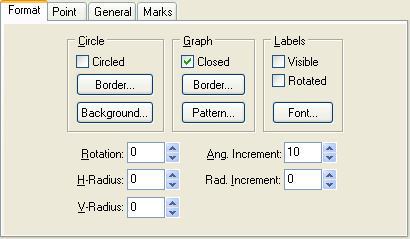

Polar Series Format tab (Chart Settings dialog box) |
|
Circle
Specifies that the elliptical is drawn as a circle.
 | This option will only have effect when at least one of the H-Radius or V-Radius boxes is set to zero. |
Displays the Border Properties dialog box to specify circle line settings.
Displays the Choose Color dialog box to specify a background color for the chart circle.
Graph
Specifies that the software draws a line between the last and first points of the series.
Displays the Border Properties dialog box to specify series line settings.
Displays the Pattern Properties dialog box to specify a background pattern for the area under the curve.
Labels
Shows or hides angular labels.
Specifies that angular labels are rotated.
Displays the Choose Font dialog box to specify a font for the angular labels.
Specifies the number of degrees by which to rotate the series.
Specifies the horizontal radius in pixels for the chart ellipse.
Specifies the vertical radius in pixels for the chart ellipse.
Specifies the number of degrees by which to increment angular measures. This option only accepts integer numbers.
 | For more precise charting, set this value to zero, and use the Change (Increment) option on the Axis Scales tab for the Bottom axis. |
Specifies the radial amount by which to draw concentric circles. This option only accepts integer numbers.
| For more precise charting, set this value to zero, and use the Change (Increment) option on the Axis Scales tab for the Left axis. |
