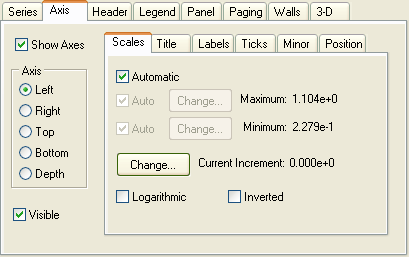

Chart Axis tab (Chart Settings dialog box)





Show Axes

Shows or hides all axes according to their individual settings.



Axis

Allows you to select one of the listed axes for modification.



Visible

Shows or hides the currently selected axis.



In addition, you can use the following tabs to customize specific axis settings:



Scales tab

Allows you to modify the extent, increment, and format of the currently selected axis.



Title tab

Allows you to specify a title, font, angle, and edge for the currently selected axis.



Labels tab

Allows you to modify settings for the currently selected axis labels.



Ticks tab

Allows you to modify settings for the currently selected axis ticks.



Minor tab

Allows you to modify settings for the currently selected axis minor ticks.



Position tab

Allows you to specify alternate positions for the currently selected axis.
