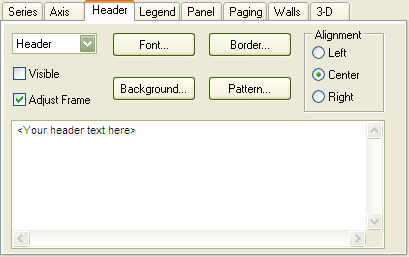

Chart Header tab (Chart Settings dialog box)





Heading

Allows you to select between the Header and Footer options.



Visible

Select or clear this box to make visible or hide the header or the footer.



Adjust Frame

Check this box to adjust the header or footer frame to fit the size of the header or footer text.  Clear this box to extend the header or footer frame to fit the width of the chart.



Font

Click this button to displays the Choose Font dialog box to specify a font for the header or footer text.



Background

Click this button to displays the Choose Color dialog box to specify a background color for the header or footer frame.



Border

Displays the Border Properties dialog box to specify border settings for the header or footer frame.



Pattern

Click this button to displays the Pattern Properties dialog box to specify pattern settings for the header or footer frame.



Alignment

Select one of Left, Center, or Right to specify the alignment of the header or footer text.



Text box

Type in this box the text you want to display in the header or footer.
